Preformed Suspension for ADSS
The preformed suspension clamp is suitable for aluminum base conductors, aluminum coated steel conductors and galvanized steel strands. It is designed to reduce static and dynamic stresses at support points, thereby protecting conductors or strands from vibrations. It also protects the conductors in the bracket from impulses and power flashovers.
Key words：
Category：
Preformed Suspension Clamp
Product description
Pictures and Illustrations
The preformed suspension clamp is suitable for aluminum base conductors, aluminum coated steel conductors and galvanized steel strands. It is designed to reduce static and dynamic stresses at support points, thereby protecting conductors or strands from vibrations. It also protects the conductors in the bracket from impulses and power flashovers.

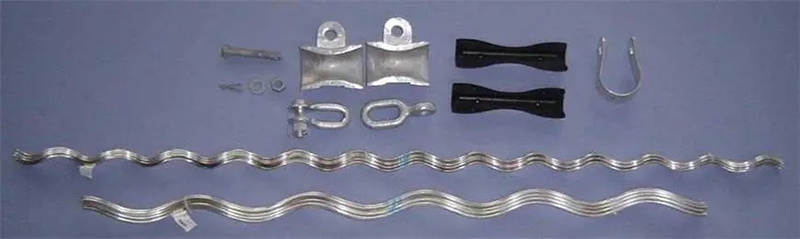

1. Structural Reinforcing Rods 2. Dead-end Component 3. AGS Clamp 4. Eye Chain Link(Type ZH) 5. U-Clevis
Model Specification
| Model | Available Dia. of Cable(mm) | Length ofDead-endComponent (mm) | Length of ReinforcingRods(mm) | Reference Weight(kg) | Universal Scheme | Available Dia. of Span (m) | ||
| AGSClamp | Link Fittings | |||||||
| AXY 0940 300 | 8.6-9.4 | 1500 | 1060 | 1.2 | TK-3 | / | U-4 | 200~300 |
| AXY 1010 300 | 9.5-10.1 | 1500 | 1060 | 1.2 | TK-3 | / | U-4 | 200~300 |
| AXY 1070 300 | 10.2-10.7 | 1540 | 1080 | 1.3 | TK-3 | / | U-4 | 200~300 |
| AXY 1140 300 | 10.8-11.4 | 1540 | 1080 | 1.3 | TK-3 | / | U-4 | 200~300 |
| AXY 1220 300 | 11.5-12.2 | 1680 | 1160 | 1.5 | TK-3 | / | U-4 | 200~300 |
| AXY 1290 300 | 12.3-12.9 | 1680 | 1160 | 1.5 | TK-3 | / | U-4 | 200~300 |
| AXY 1370 300 | 13-13.7 | 1800 | 1250 | 1.7 | TK-3 | / | U-4 | 200~300 |
| AXY 1460 300 | 13.8-14.6 | 1800 | 1250 | 1.7 | TK-3 | / | U-4 | 200~300 |
| AXY 1550 300 | 14.7-15.5 | 1800 | 1250 | 1.8 | TK-3 | / | U-4 | 200~300 |
| AXY 0940 400 | 8.6-9.4 | 1600 | 1100 | 1.2 | TK-3 | / | U-4 | 300~400 |
| AXY 1010 400 | 9.5-10.1 | 1600 | 1100 | 1.2 | TK-3 | / | U-4 | 300~400 |
| AXY 1070 400 | 10.2-10.7 | 1600 | 1100 | 1.3 | TK-3 | / | U-4 | 300~400 |
| AXY 1140 400 | 10.8-11.4 | 1600 | 1100 | 1.3 | TK-3 | / | U-4 | 300~400 |
| AXY 1220 400 | 11.5-12.2 | 1720 | 1200 | 1.5 | TK-3 | / | U-4 | 300~400 |
| AXY 1290 400 | 12.3-12.9 | 1720 | 1200 | 1.5 | TK-3 | / | U-4 | 300~400 |
| AXY 1370 400 | 13-13.7 | 1150 | 900 | 1.2 | TK-3 | / | U-4 | 300~400 |
| AXY 1460 400 | 13.8-14.6 | 1840 | 1300 | 1.8 | TK-3 | / | U-4 | 300~400 |
| AXY 1550 400 | 14.7-15.5 | 1840 | 1300 | 1.9 | TK-3 | / | U-4 | 300~400 |
| AXY 1220 500 | 11.5-12.2 | 1760 | 1260 | 1.8 | AGS-4 | / | U-7 | 400~500 |
| AXY 1290 500 | 12.3-12.9 | 1760 | 1260 | 1.6 | AGS-4 | / | U-7 | 400~500 |
| AXY 1370 500 | 13-13.7 | 1860 | 1300 | 1.8 | AGS-4 | / | U-7 | 400~500 |
| AXY 1460 500 | 13.8-14.6 | 1860 | 1300 | 1.8 | AGS-4 | / | U-7 | 400~500 |
