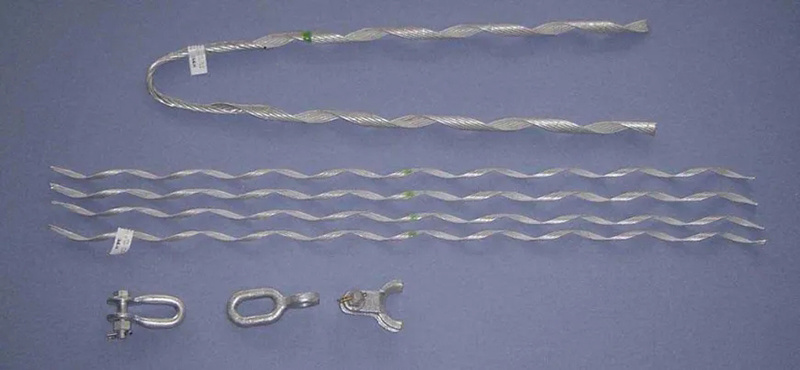

Dead-end for Medium/Long Span ADSS
Dead-end for Medium Span ADSS in tension and large tension Clamp material for aluminum-clad steel wire, mainly used for files larger than 100 meters away from the corner tower, the middle tower and Terminal Tower successive connection.
Key words：
Category：
Preformed tension clamp
Product description
Pictures and Illustrations

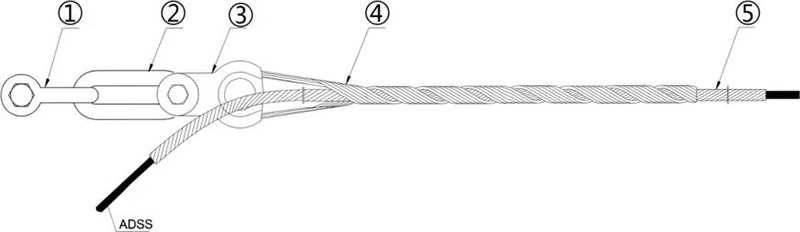

1. U-Clevis 2. PH-Link 3. Thimble 4. Dead-end Component 5. Structural Reinforcing Rods
Model Specification
| Model | AvailableDia. of Cable (mm) | Grip strengt h (kN) |
Length of Dead-end Component (mm) |
Length of Reinforcing Rods(mm) | Reference Weight (kg) | Universal Scheme | Reference Span (m) | ||
| Link | Thimble | Clevis | |||||||
| ANY 0940 020 | 8.6-9.4 | 20 | 800 | 1100 | 0.9 | PH-4 | TC-2 | U-4 | 200~300 |
| ANY 1010 020 | 9.5-10.1 | 20 | 800 | 1100 | 0.9 | PH-4 | TC-2 | U-4 | 200~300 |
| ANY 1070 020 | 10.2-10.7 | 20 | 800 | 1100 | 1.0 | PH-4 | TC-2 | U-4 | 200~300 |
| ANY 1140 020 | 10.8-11.4 | 20 | 800 | 1100 | 1.0 | PH-4 | TC-2 | U-4 | 200~300 |
| ANY 1220 020 | 11.5-12.2 | 20 | 800 | 1100 | 1.1 | PH-4 | TC-2 | U-4 | 200~300 |
| ANY 1290 020 | 12.3-12.9 | 20 | 800 | 1100 | 1.4 | PH-4 | TC-2 | U-4 | 200~300 |
| ANY 1370 020 | 13.0-13.7 | 20 | 800 | 1100 | 1.3 | PH-4 | TC-4 | U-4 | 200~300 |
| ANY 1460 020 | 13.8-14.6 | 20 | 800 | 1100 | 1.3 | PH-4 | TC-4 | U-4 | 200~300 |
| ANY 1550 020 | 14.7-15.5 | 20 | 800 | 1100 | 1.5 | PH-4 | TC-4 | U-4 | 200~300 |
| ANY 0940 030 | 8.6-9.4 | 30 | 1100 | 1400 | 1.2 | ZH-4 | TC-2 | U-4 | 300~400 |
| ANY 1010 030 | 9.5-10.1 | 30 | 1100 | 1400 | 1.2 | ZH-4 | TC-2 | U-4 | 300~400 |
| ANY 1070 030 | 10.2-10.7 | 30 | 1100 | 1400 | 1.4 | ZH-4 | TC-2 | U-4 | 300~400 |
| ANY 1140 030 | 10.8-11.4 | 30 | 1100 | 1400 | 1.4 | ZH-4 | TC-2 | U-4 | 300~400 |
| ANY 1220 030 | 11.5-12.2 | 30 | 1100 | 1400 | 1.7 | ZH-4 | TC-4 | U-4 | 300~400 |
| ANY 1290 030 | 12.3-12.9 | 30 | 1100 | 1400 | 1.7 | ZH-4 | TC-4 | U-4 | 300~400 |
| ANY 1370 030 | 13.0-13.7 | 30 | 1100 | 1400 | 1.9 | ZH-4 | TC-4 | U-4 | 300~400 |
| ANY 1460 030 | 13.8-14.6 | 30 | 1100 | 1400 | 1.9 | ZH-4 | TC-4 | U-4 | 300~400 |
| ANY 1550 030 | 14.7-15.5 | 30 | 1100 | 1400 | 2.1 | ZH-4 | TC-4 | U-4 | 300~400 |
