ADSS short-span Dead-End
Dead-end for Short Span ADSS with a small Tension Clamp material for aluminum-clad gang wire, mainly used for the corner towers, the middle of follow-tower and connecting the terminal tower, the largest installation file from the less than 100 meters.
Key words：
Category：
Preformed tension clamp
Product description
Product description
ADSS stands for All-Dielectric Self-Supporting, and it refers to a type of optical fiber cable used for telecommunications. ADSS cables are designed to be self-supporting and do not require additional support structures such as poles or towers.
A short-span dead-end (SSDE) is a type of cable support system used for ADSS cables on short spans, typically less than 300 feet. The SSDE system consists of a tension clamp and a suspension clamp that anchor the cable at both ends, with a strain relief section in the middle to absorb any tension caused by wind or other external factors.
The SSDE system is commonly used in areas where traditional support structures are not available or are not feasible, such as in urban areas or over bodies of water. It provides a secure and reliable way to support ADSS cables over short distances while maintaining their integrity and performance.

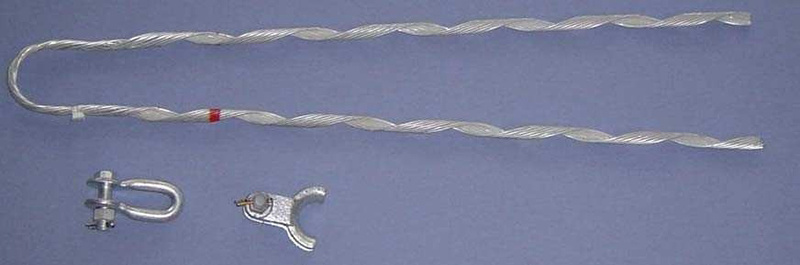

Pictures and Illustrations

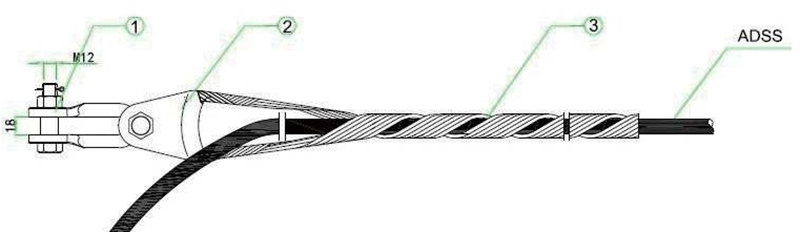

1. U-Clevis 2. Thimble 3. Helical Dead-end
Model Specification
| Model | Available Dia. of Cable（mm） | Length of Dead-end Component (mm) | Reference Weight (kg) | Universal Scheme | |
| U-Clevis | Thimble | ||||
| ANJ 0950 | 9.0-9.5 | 700 | 0.4 | U-4 | TC-2 |
| ANJ 1050 | 9.6-10.5 | 850 | 0.5 | U-4 | TC-2 |
| ANJ 1160 | 10.6-11.6 | 1000 | 0.5 | U-4 | TC-2 |
| ANJ 1280 | 11.7-12.8 | 960 | 0.7 | U-4 | TC-2 |
| ANJ 1410 | 12.9-14.1 | 1080 | 0.8 | U-4 | TC-2 |
| ANJ 1560 | 14.2-15.6 | 1160 | 1.2 | U-4 | TC-2 |
| ANJ 1700 | 15.7-17.0 | 1160 | 1.2 | U-4 | TC-2 |
