Side Ties
Side ties are designed for securing conductors in the side groove of insulators. Both vertically or horizontally mounted. They eliminate fatigue and wear problems on conductors.
Key words：
Category：
Ties
Product description
Product Description
Side ties are designed to secure conductors in the side groove of insulators, which can be mounted vertically or horizontally. They are used to prevent the conductor from vibrating or moving within the groove, which can cause fatigue and wear problems over time. By securing the conductor in place, side ties can help to extend the lifespan of both the conductor and the insulator, leading to improved performance and reduced maintenance costs.
Function

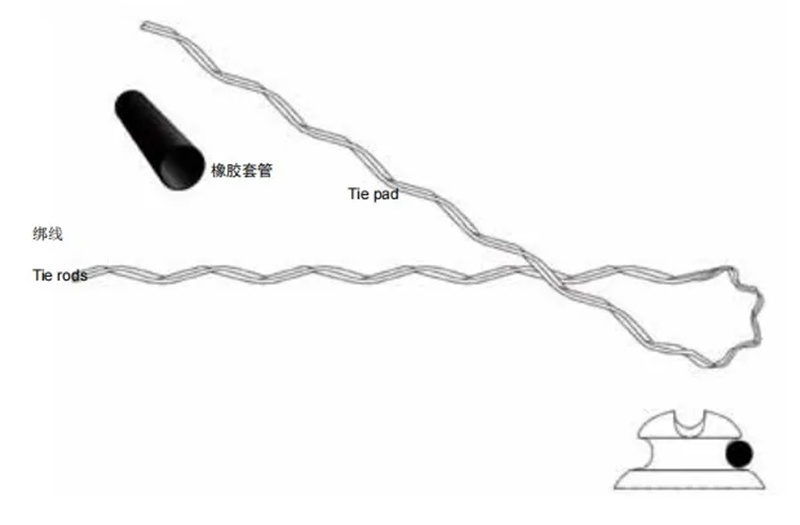

Side ties are designed for securing conductors in the side groove of insulators. Both vertically or horizontally mounted. They eliminate fatigue and wear problems on conductors. Its design takes into account a tie pad to protect the bare conductor from abrasion at the conductor-insulator Interface. Tie pads are not required with jacketed conductors.This product is manufactured with aluminum covered steel for ACSR and homogeneous conductors with copper covered steel for copper conductors and galvanized steel for direct application on insulated conductor.
Mechanical Strength
Side ties have a slip load superior to 3.5kN in unbalanced load conditions. This strength is usually sufficient to contain a broken conductor to a single span.
Note
The lay direction of side ties must be the same as the that the outer stranding of the conductor to which it is applied.

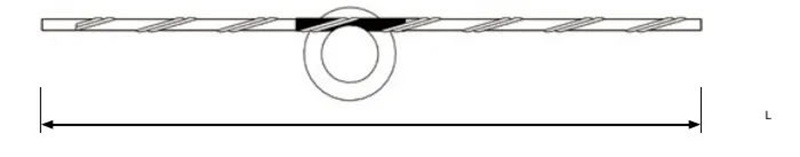

Side ties
- For galvanized steel cables
SELECTION CHART
| Model (naked wire) | Model no. (insulation wire) | Wire diameter | Product Parameter | Suitable International wire | ||||
| Min. | Max. | Color | Num. Of one set | LJ | Comment insulation(10KV) | thin-insulation(10KV) | ||
| BDT6100 | BDT6200 | 4.83 | 5.46 | Blue | 2 | 16 | 10 | |
| BDT6101 | BDT6201 | 5.74 | 6.2 | Brown | 2 | 16 | ||
| BDT6102 | BDT6202 | 6.21 | 7.04 | Orange | 2 | 25 | ||
| BDT6103 | BDT6203 | 7.05 | 8 | Purple | 2 | 35 | ||
| BDT6104 | BDT6204 | 8.01 | 9.07 | Red | 2 | 50 | ||
| BDT6105 | BDT6205 | 9.08 | 10.29 | Yellow | 2 | |||
| BDT6106 | BDT6206 | 10.3 | 11.66 | Blue | 2 | 70 | ||
| BDT6107 | BDT6207 | 11.67 | 13.21 | Orange | 2 | 95 | 10、16 | |
| BDT6108 | BDT6208 | 13.22 | 14.94 | Red | 2 | 120 | 25 | |
| BDT6109 | BDT6209 | 14.95 | 16.89 | Purple | 2 | 150 | 25、35 | 35、50 |
| BDT6110 | BDT6210 | 16.9 | 19.18 | Brown | 2 | 185、210 | 50 | 70 |
| BDT6111 | BDT6211 | 19.2 | 21.79 | Red | 2 | 240 | 70、95 | 95、120 |
| BDT6112 | BDT6212 | 21.82 | 24.59 | Blue | 2 | 300 | 120、150 | 150、185 |
| BDT6113 | BDT6213 | 24.61 | 27.84 | Green | 2 | 400 | 185 | 240 |
| Note：Suit for dextro naked wire and insulation wire. | ||||||||
